Cameo F1 FC Fresnel LED
Cameo F1 FC Fresnel – LED Fresnel spotlight for rent in Berlin.

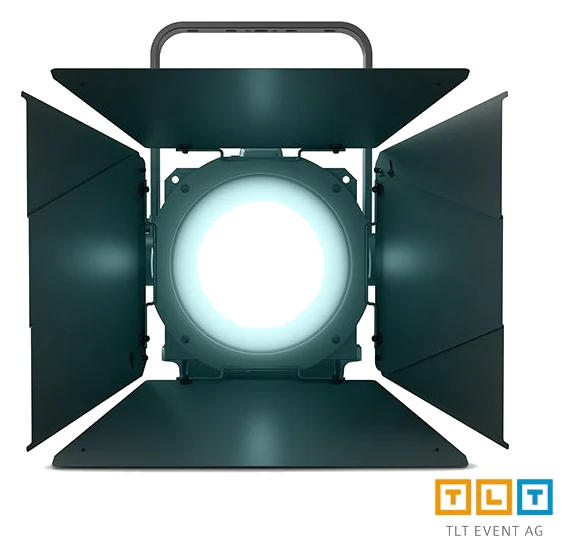

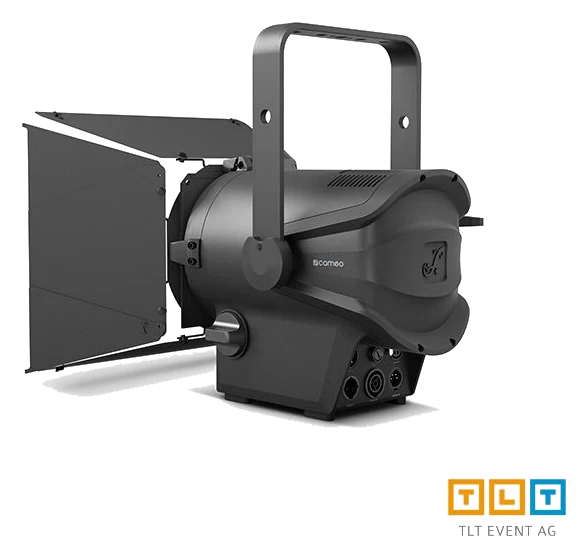

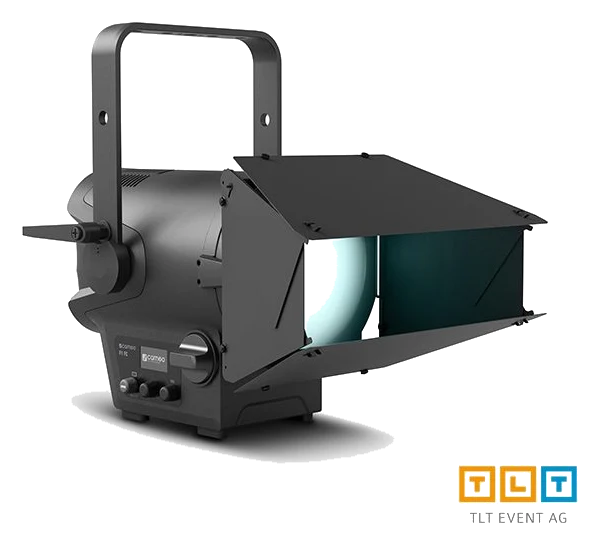

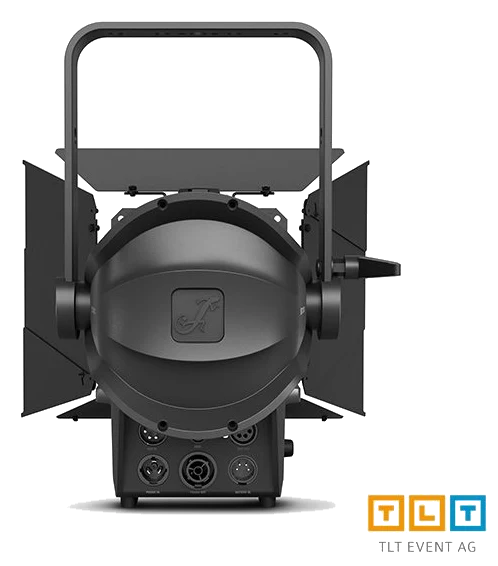

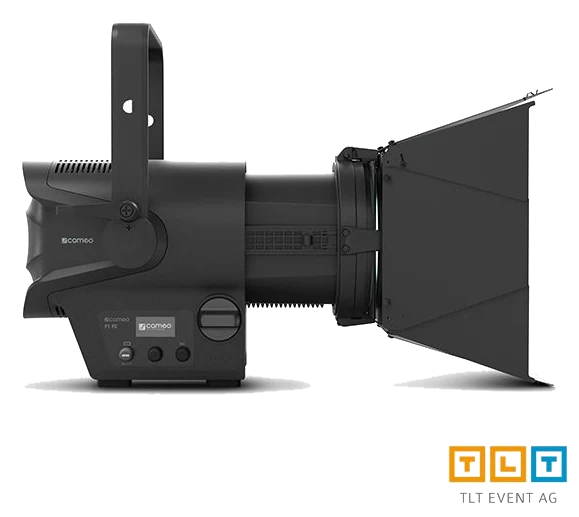

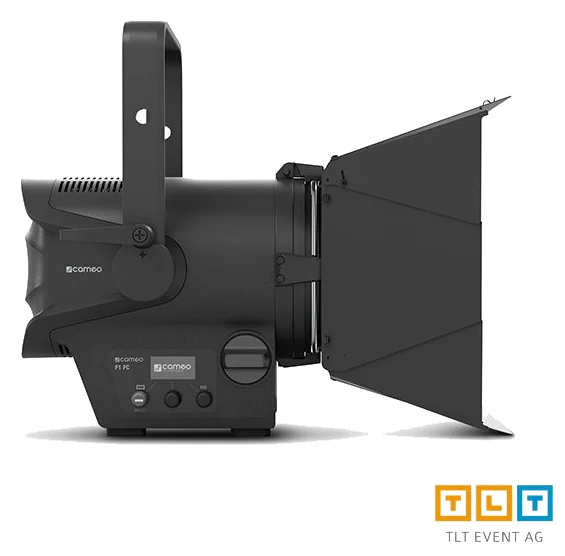

The F1 FC has a 150 mm Fresnel lens and an RGBW LED configuration (10 green, 10 red, 20 white, 6 blue). Beam angle is 15° to 51°, field angle 26° to 75°. An 8-leaf barndoor and gel frame are included. PWM frequency is adjustable.
Technical data
| LED Anzahl | 10 x grün, 10 x rot, 20 x weiß, 6 x blau |
| LED Typ | 124 W, 87 W |
| LED PWM Frequenz | 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz – einstellbar |
| Abstrahlwinkel | Beam Angle: 15 – 51 °, Field Angle: 26 – 75 ° |
| Linse | 150 mm Fresnel |

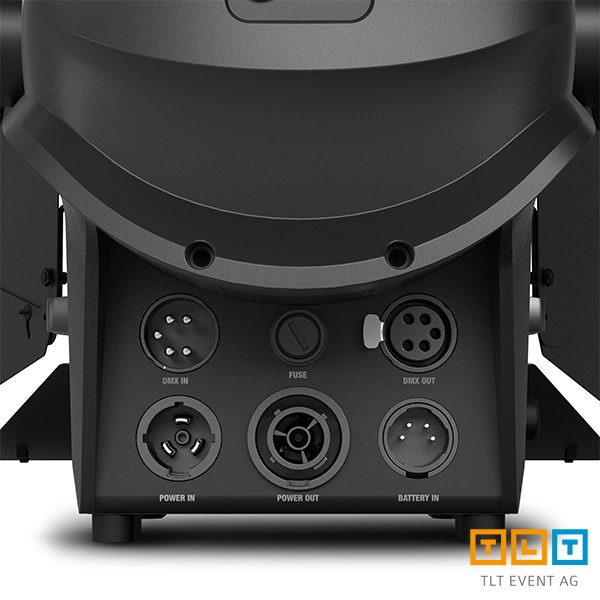

| DMX Eingang/Ausgang | 5-Pol |
| Standalone Modi | Master / Slave Modus, Static |
| Bedienelemente | Push-Encoder |
| Anzeigeelemente | OLED Display |
| Leistungsaufnahme | 128 W |
| Stromversorgung | Powercon TRUE1 in/out |
| Gehäusematerial | Magnesium |
| Gehäusefarbe | schwarz |
| Schutzklasse | IP20 |
