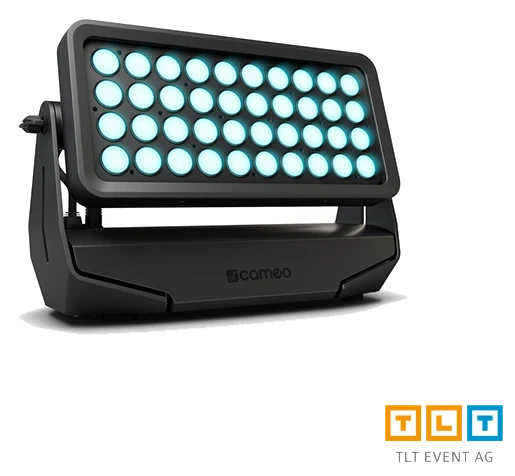

Cameo ZENIT W600 Outdoor LED Washlight
Cameo ZENIT W600 Outdoor LED Washlight
Technische Daten
Technical data
| Abmessungen | 463 x 161 x 291mm |
| Gewicht | 13,00kg |
| Leistungaufnahme | 565W |
| Schutzklasse | IP65 |
| Farbe | schwarz |
| Farbspektrum | RGBW |
| LED Anzahl | 40 |
| LED Typ | 15W |
| Wiederholrate Verstellbar | 800Hz, 1200Hz, 2000Hz, 3600Hz, 12000Hz, 25000 Hz |
| Abstrahlwinkel | 18° Beam, 35° Field (ohne Diffusor) |
| Linse | PE und gehärtetes Glas |

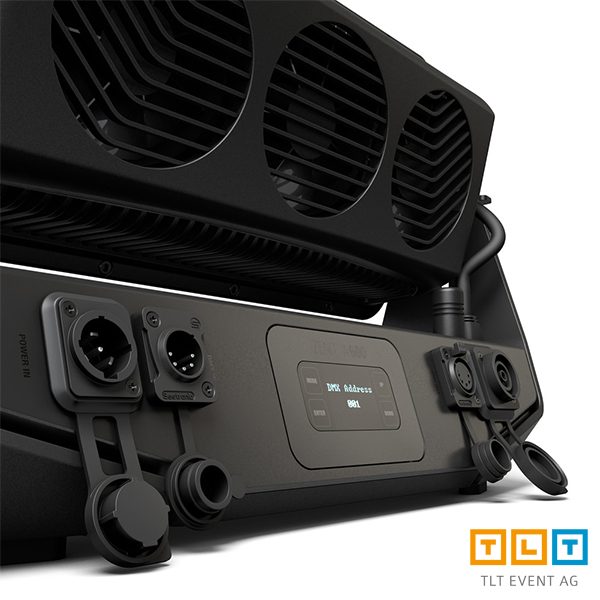

| DMX Eingang und Ausgang | 5-Pol IP65 |
| DMX Modus | 10-Kanal, 15-Kanal, 2-Kanal, 3-Kanal, 4-Kanal, 8-1 Kanal, 8-2 Kanal |
| DMX Funktionen | Auto-Programme, Colour Macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, RGBW, RGBW Fine, Strobe |
| Standalone Modi | Auto-Programme, Colour Macro, Master / Slave Modus, Settings, Static, System Info, Tunable White, User Colours |
| Bedienelemente | Enter, Mode, Value Down, Value Up |
| Anzeigeelemente | OLED Display |
| Stromversorgung | 100 V AC 240 V AC / 50 60 Hz |
| Power Faktor | 0,99 PF (120V) / 0,96 PF (230V) |
| Gehäusematerial | Aluminium |
| Kühlung | Temperaturgesteuerte Lüfter (IP65) |
| Lichtstrom | 21000 lm |
| Effizienz | 37,2 lm/W |
| Betriebstemperatur | 0 – 40°C |
| Omega-Montagebügel | 2x |
This product is currently not available. Get in touch and we will suggest alternatives or a possible date.
