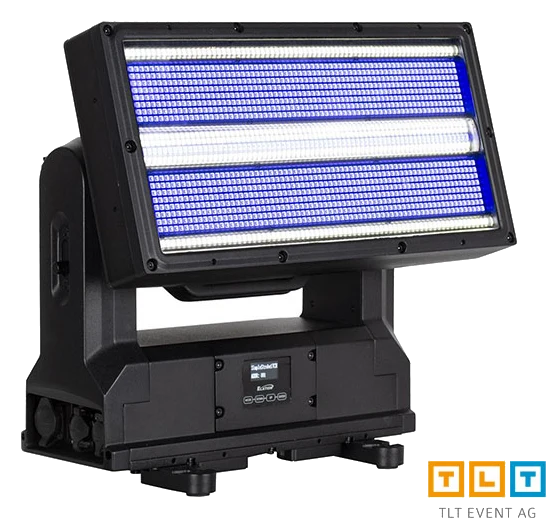

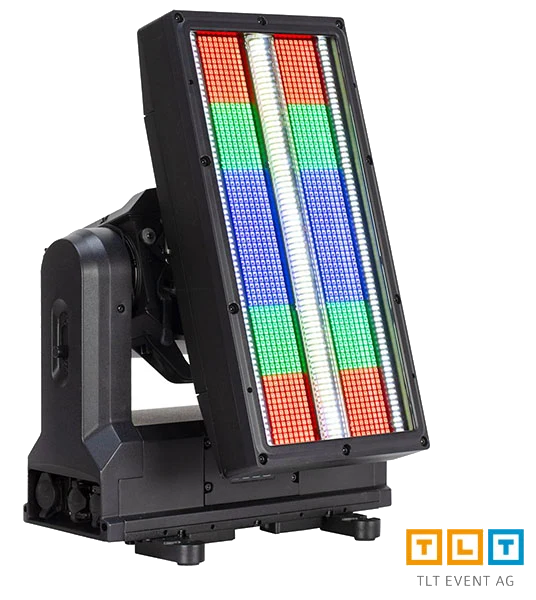

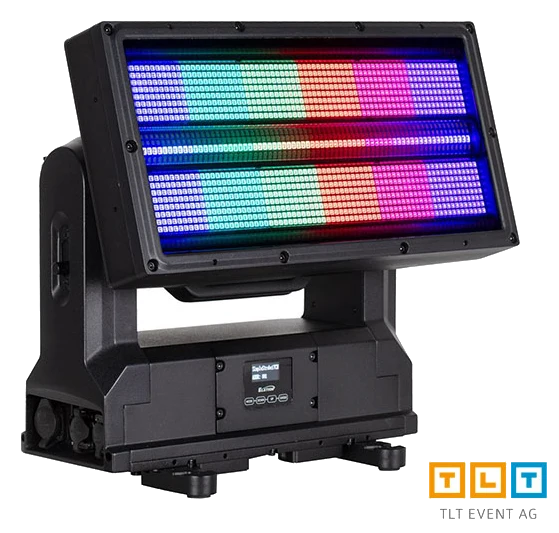

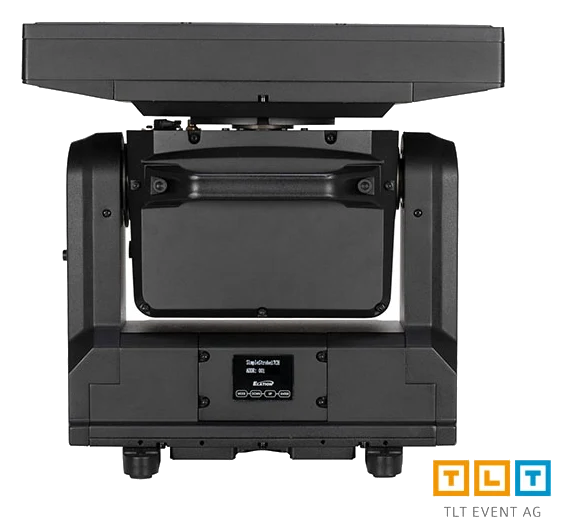

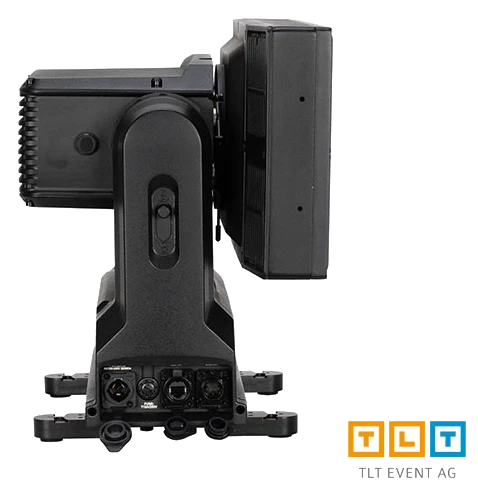

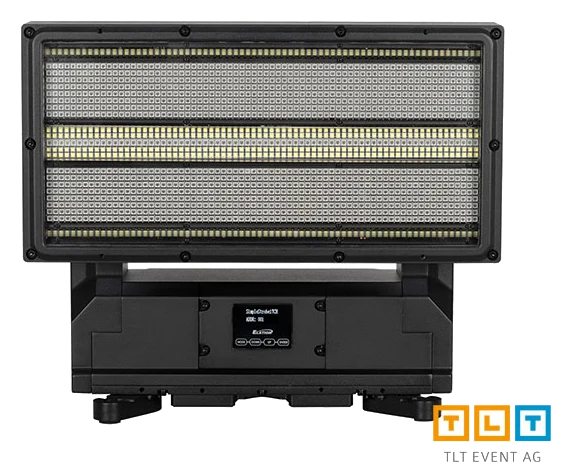

Elation Pulse Panel FX
Elation Pulse Panel FX – LED panel moving head for rent in Berlin.
The Pulse Panel FX has a grid of 6 x 4 zones (24 zones) with multichip LEDs (RGB+CW) and over 100,000 lm of light output. The panel tilts by 180° and rotates continuously through 360°. The beam angle is 68°, optics are exchangeable.
Technical data
| Leuchtmittel | 1152x 1,5 W RGB Multichip LED (24 Zonen) |
| Lichtleistung | 100.000 + Lumen |
| Farben | 1.248x rot, 1.248x grün, 1.248x blau, 432x kaltweiß |
| Farbmischung | RGB+CW |
| Optik | wechselbare optische Systeme |
| Abstrahlwinkel | 68° |
| Shutter/Strobe | ja (elektronisch) |
| Dimmer | 0-100% linear, 8/16-Bit |
| Protokoll | DMX 512-A (RDM), ArtNet, sACN, Kling-Net, Aria x2 |
| Speicher | Stand Alone-Programme Festfarben, Master-/Slave-Steuerung |
| Pan-/Tilt | Pan 360° (ohne Anschlag), Tilt 180° |
| DMX | XLR 5 pol |
| ArtNet | 2x etherCON RJ 45 |
| Netzspannung | 100-240 V, 50/60 Hz |
