LUMENRADIO Luna Wireless Transceiver
LumenRadio Luna Wireless Transceiver – wireless DMX transmitter and receiver for rent in Berlin.

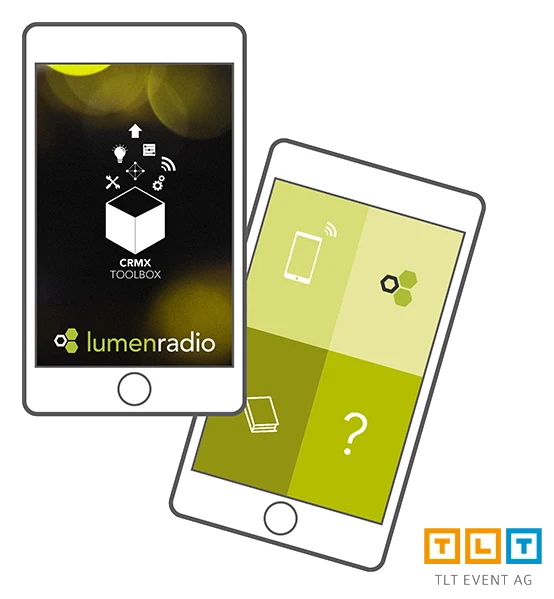

The Luna is switchable between transmitter and receiver and transmits 512 DMX channels (1 universe) in the 2.4 GHz band with adaptive frequency hopping. Output power is selectable in four steps (10 to 300 mW), the maximum range is about 700 m. RDM is supported in receiver mode; configuration is via Bluetooth 5.0 and the CRMX Toolbox app.
Technical data
| Funktion | Wireless DMX Sender/Empfänger mit RDM-Support (RDM nur RX-Mode) |
| Wireless Modi | Sender/Empfänger |
| Frequenzband | 2,4 GHz |
| Adaptives Frequenzhoping | Ja |
| Sende-/Empfangsleistung | 10, 50, 100, 300 mW wählbar |
| Max. Funkstrecke | ca. 700 m |
| RDM Rückmeldung | CRMX Toolbox App |
| Protokoll | DMX 512 A (RDM) |
| Bluetooth | Bluetooth 5.0 |
| Antennen-Anschluss | 1x RP-TNC |
| Netzteil | intern |
| Netzspannung | 100-240 V 50/60 Hz (10-20 V DC) |
| Gehäuse-Schutzklasse | IP 20 |
| Montage | Desktop, 3/8″ & M10 Gewinde, Wandmontage |
